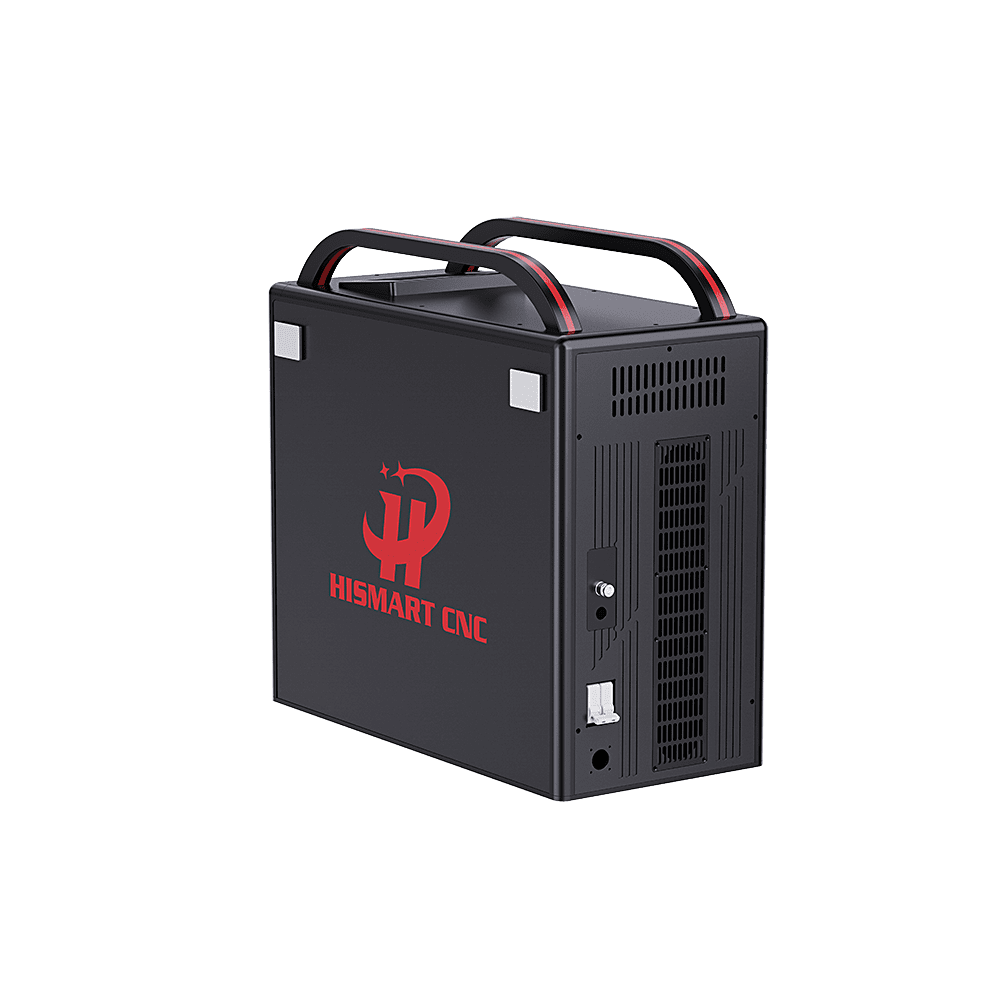

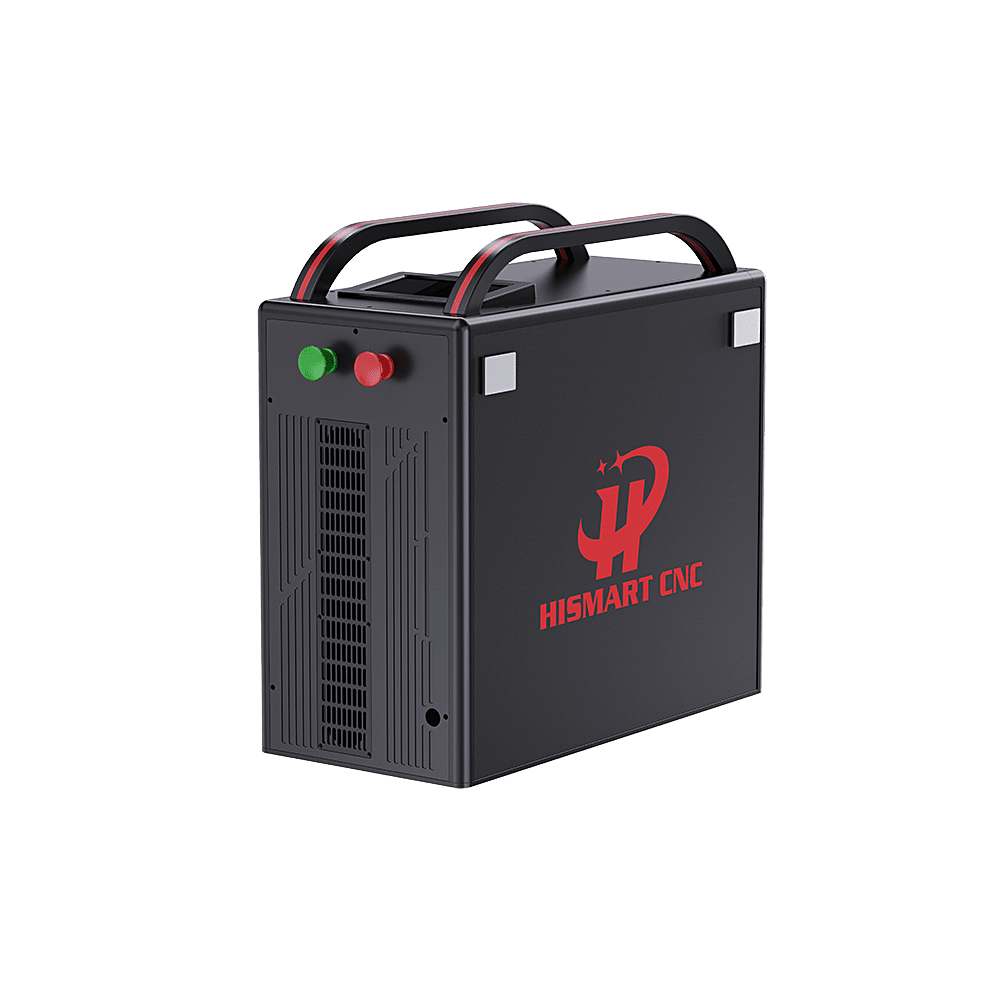

Air cooling handheld laser welding machine

1. This laser machine can realize laser cutting, laser cleaning, and laser welding functions in one machine.

2. It has multiple and complete functions but with low cost, which is quite cost-effective than the common laser welding and laser cleaning machine.

3. With a compact size, it occupies a small space, which saves the shipping costs and is suitable for small businesses.

4. It’s easy and convenient to exchange among the laser cutting, cleaning, and welding functions by changing the laser cutting head, protective lens, and system.

5. The handheld welding gun is flexible to operate to realize welding work in multiple directions.

6. The non-contact cleaning method will not damage the surface of the workpieces to be cleaned..



Technical Parameters

Model	HS800W	HS1500W
laser power	800w	1500w
Laser wavelength	1080nm
Laser frequency	50-20000Khz
Cooling method	Water cooling
Cooling water	Purified water or distilled water
Fiber length	8-10m
Voltage	380V/220V±10% 50/60Hz
Working temperature	10°C-40°C
Humidity	≤70%
Processing materials	stainless steel, carbon steel, aluminum
